Just some notes I made while following along with this now-famous blender donut tutorial. I’ll be making additional notes for each of the videos in the series!

• Notes below correspond to this YouTube video
• You can download a PDF copy of this post here
• You can download the associated “.blend” file here. This file is the result of my work after following along with the steps in the YouTube video.

Moving Objects Link to heading

You start out in the 3D viewport.

• “G” to grab items and move them around
• “X”, “Y”, and “Z” to snap to an axis and move along it
• “Esc” or right click to cancel
• Left click or enter to commit to the move
• “Control + Z” to undo

Rotating Objects Link to heading

• “R” to rotate
• “X”, “Y”, or “Z” to choose axis of rotation
• “Esc” or right click to cancel

Scaling Objects Link to heading

• “S” to scale
• Global by default (scales equally in all directions)
• “X”, “Y”, or “Z” to choose an axis to scale along
• “Esc” or right click to cancel

Changing Your Viewpoint Link to heading

Orbiting Link to heading

There are four ways to orbit (move around a point in the 3D viewport):

1. When using a 3-button mouse, orbit by clicking and holding the middle mouse button while moving the mouse

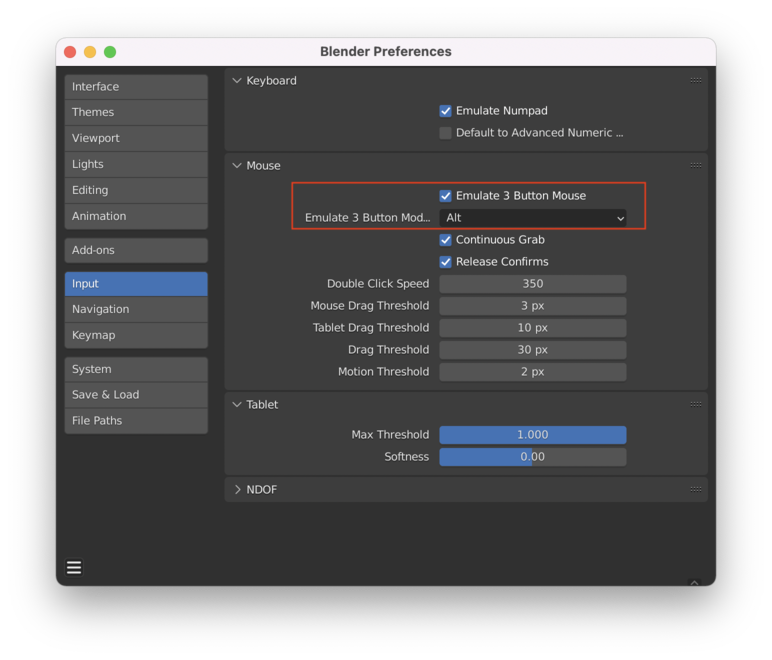

2. With a 2-button mouse or standard laptop trackpad, turn on “Emulate 3-button Mouse” from the settings, then hold down “Alt” while moving the mouse or touching the trackpad:

A note for Mac users: You might want to use the “Command” key (“OS Key”) instead of “Alt”.

3. On a multitouch trackpad (like the one on a MacBook), use two fingers to orbit
4. Use the orbit tool in the upper left-hand corner of the 3D viewport:

Panning Link to heading

There are four ways to pan:

1. Hold down “Shift” + middle mouse button on your mouse
2. On a multitouch trackpad, “Shift” + two fingers on the trackpad to move
3. On an ordinary trackpad, “Shift + Alt” (Emulate 3 button mouse) + one finger on the trackpad to move

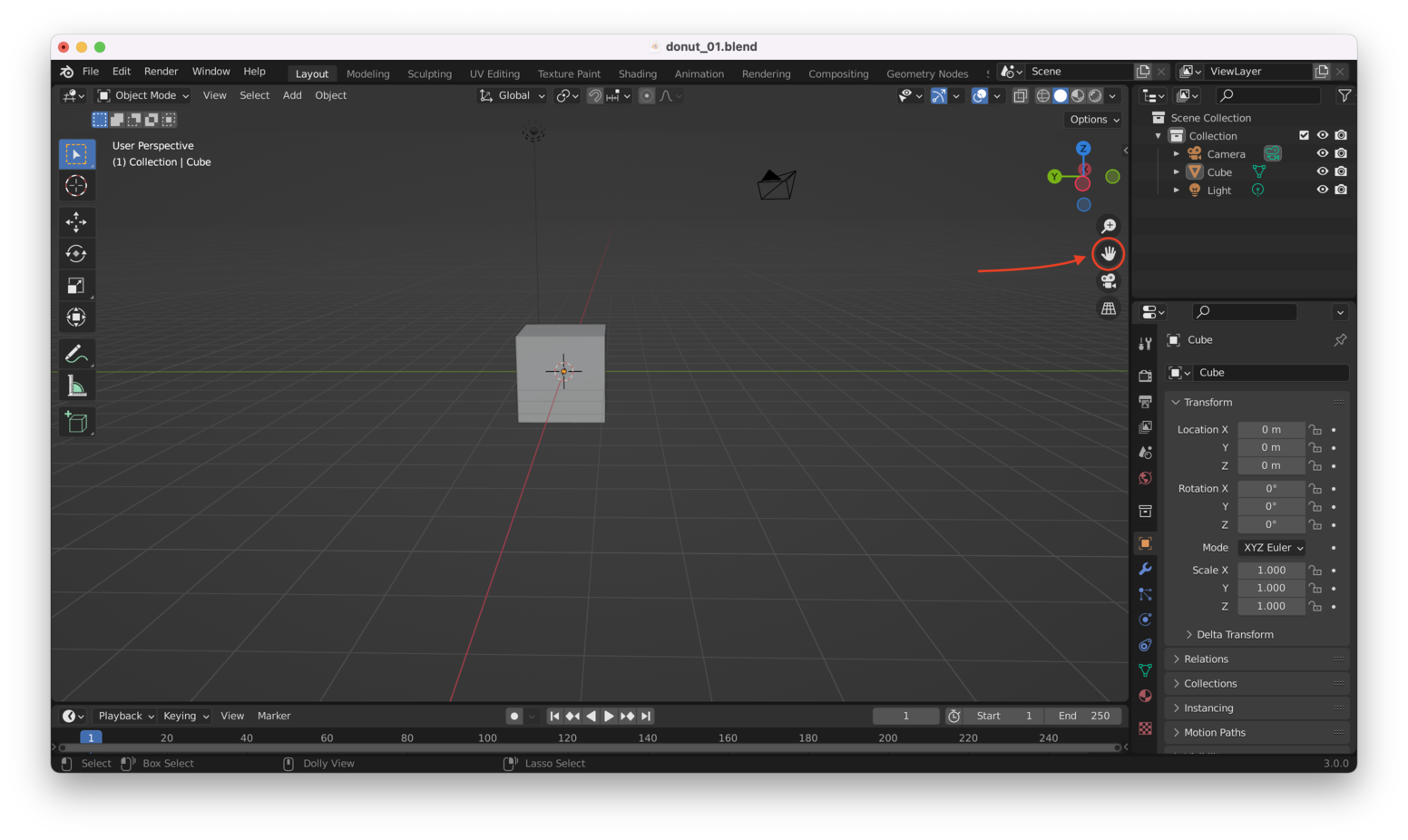

4. Use the pan tool:

Zooming Link to heading

1. With a mouse, use the scroll wheel to zoom in and out
   • For a “smoother” zoom, use “Control” + middle mouse button
2. On a multitouch trackpad, use two finger “pinch and zoom” to zoom in and out
3. On an ordinary trackpad, simulate middle mouse button with “Alt” to zoom

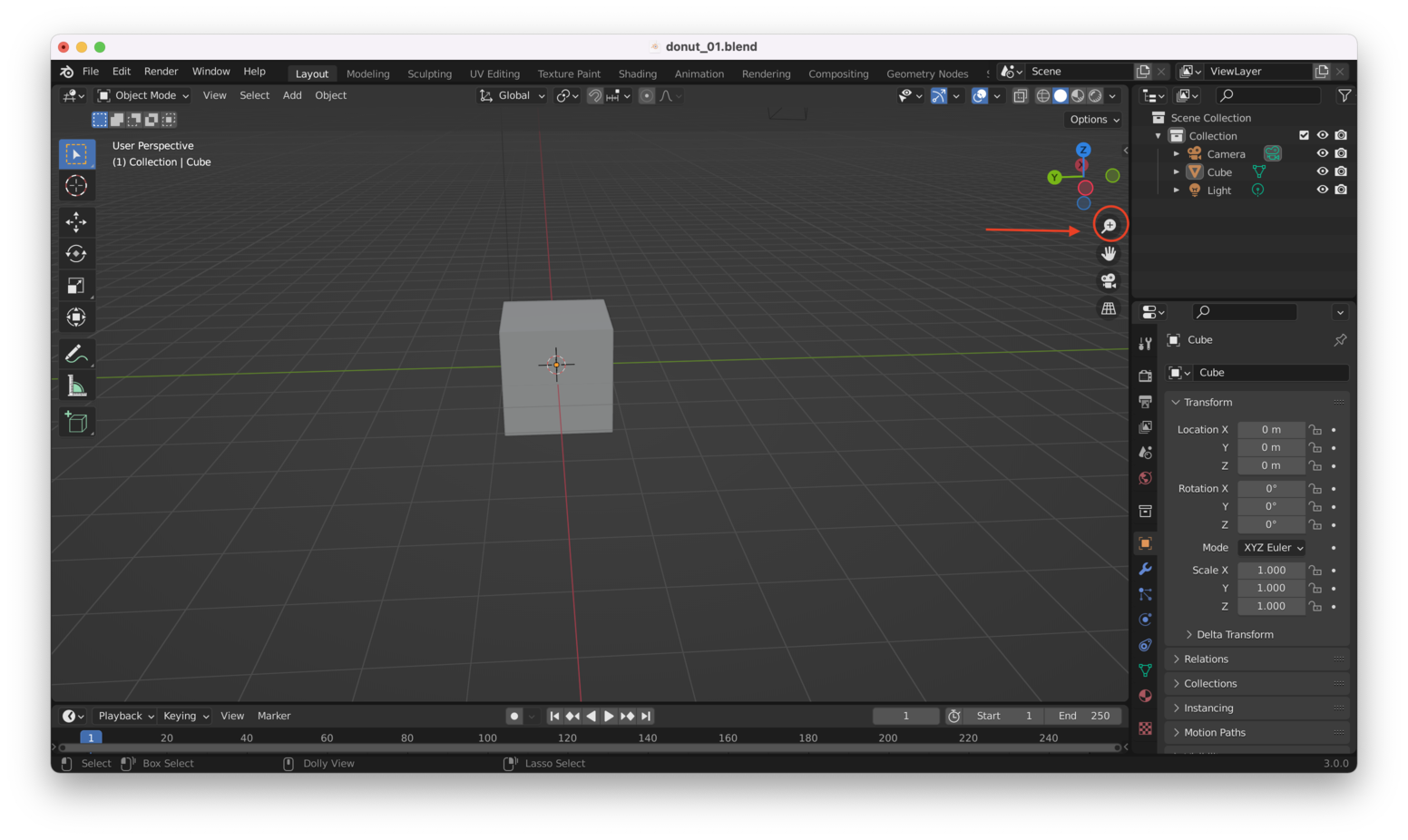

4. Use the zoom tool:

Focusing On An Object Link to heading

You can also switch to viewing a particular object by first selecting the object, then hitting the “.” (period) key on the number pad.

If you are on a laptop and don’t have a full size keyboard with a number pad, then use the tilde “~” key while the object is selected, which will open up a view menu on top of the object. From that menu, select “View Selected” or hit “3” on your keyboard:

Align With A Particular Axis (X, Y, Z) Link to heading

There are several ways to align the viewport to a particular axis. The first is to use the orbiter tool (click on one of the three letters, “X”, “Y” or “Z”) on the orbiter tool:

Or better, just learn the keyboard shortcuts

• Use the “1” key for front view
• Use the “3” key for side view
• Use the “7” key for top view

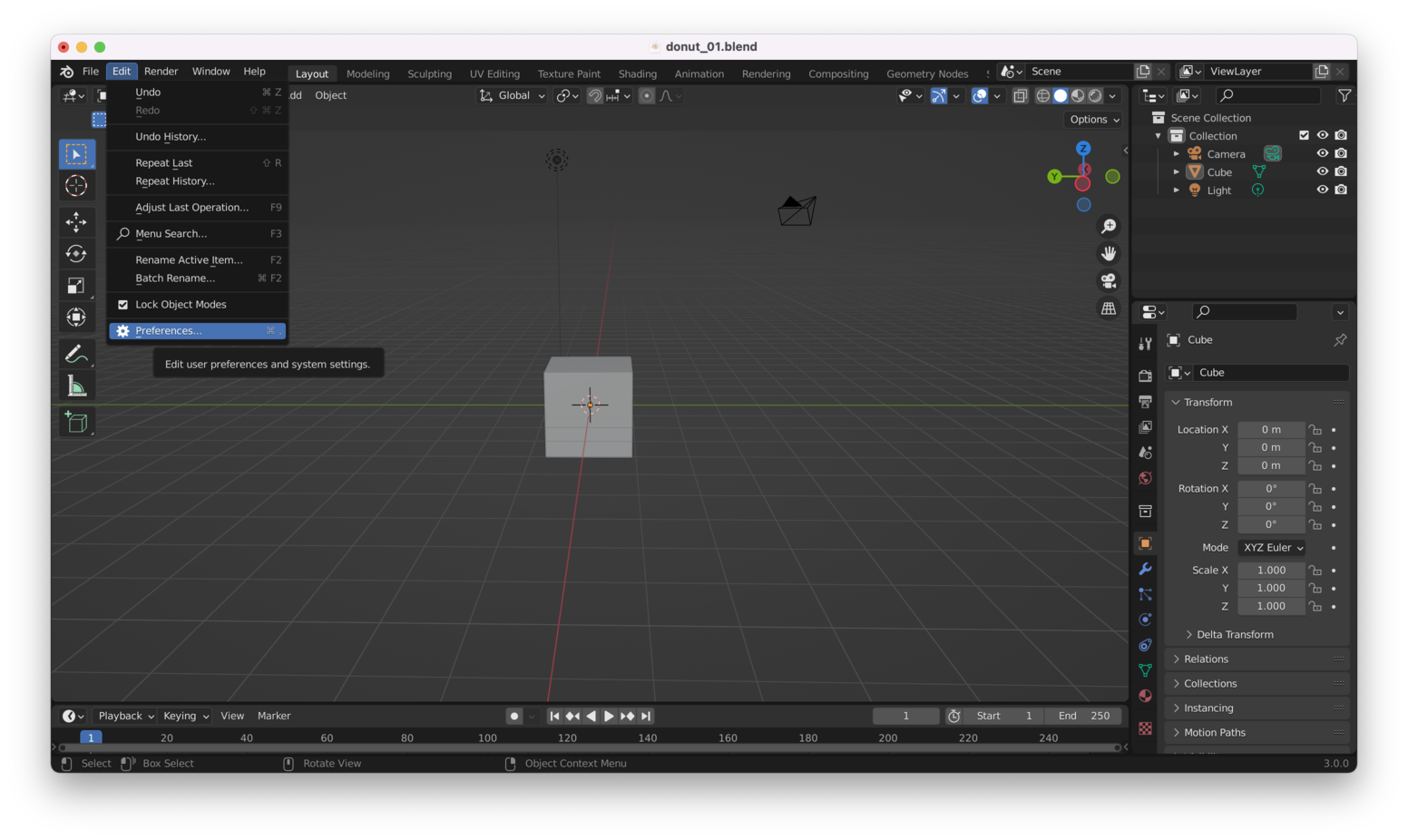

On a laptop or keyboard without a number pad, you will have to enable Number Pad Emulation first from Edit –> Preferences –> Input:

By default, aligning to an axis turns on orthographic mode (meaning objects are shown with no sense of perspective). This is good when editing and aligning things, but may not be so great when you are trying to get a sense for how your scene looks overall. You can toggle this on and off using “5” on your number pad (or just the “5” key along the top of your keyboard, if you’ve turned on number pad emulation).

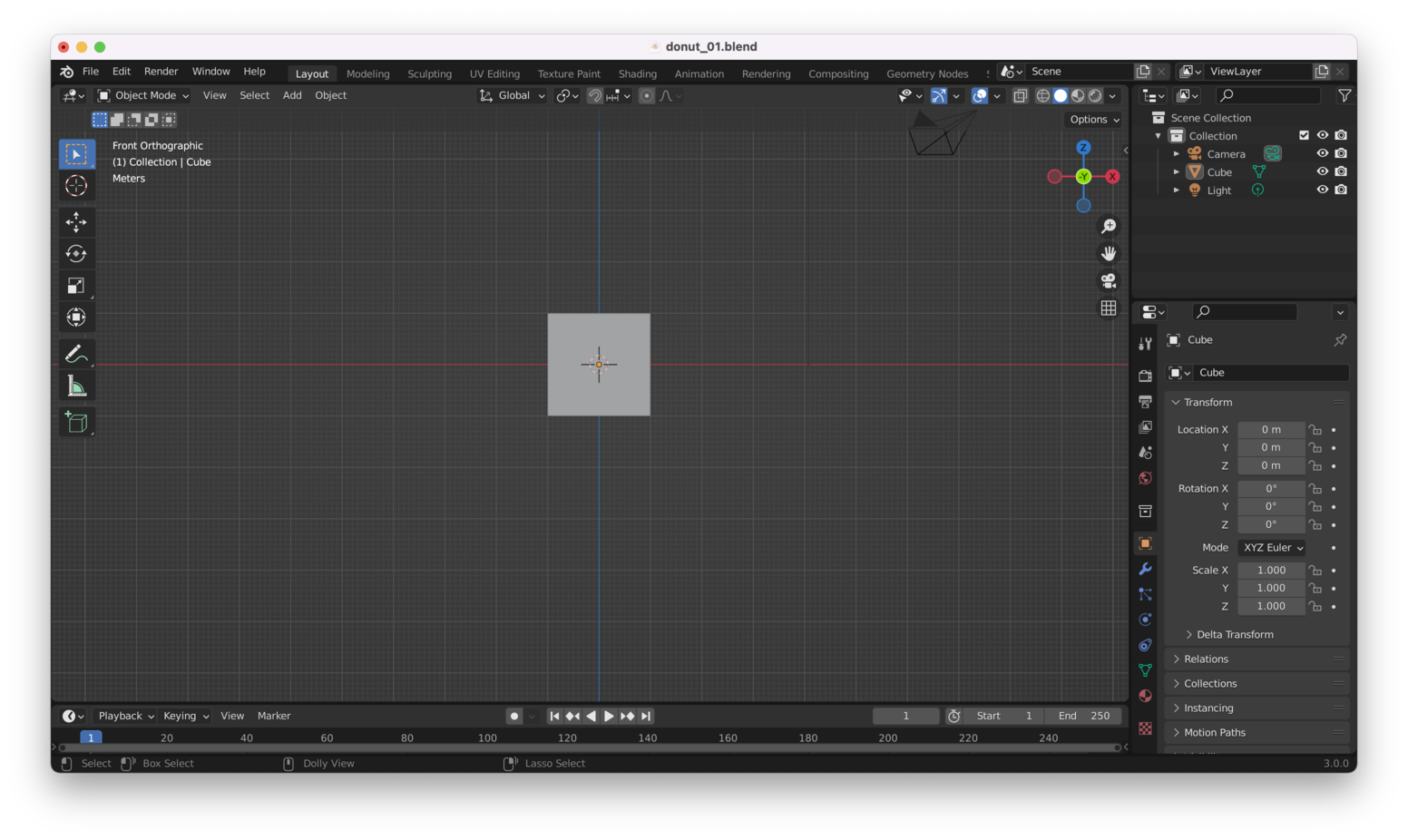

Here’s the view with orthographic mode turned on:

Versus with orthographic mode turned off:

If you look closely at the second picture, you’ll notice the grid lines are heading towards a vanishing point somewhere farther back in the scene (i.e. there is a sense of perspective).

Other Ways To Align To View Link to heading

• From View -> Viewport on the top menu bar in blender
• Using tilde “~” while an object is selected, to open the view menu
• Alt + middle mouse button while orbiting will snap the view to each axis as you orbit

Dealing With Blender If You Are Used To Other 3D Software Link to heading

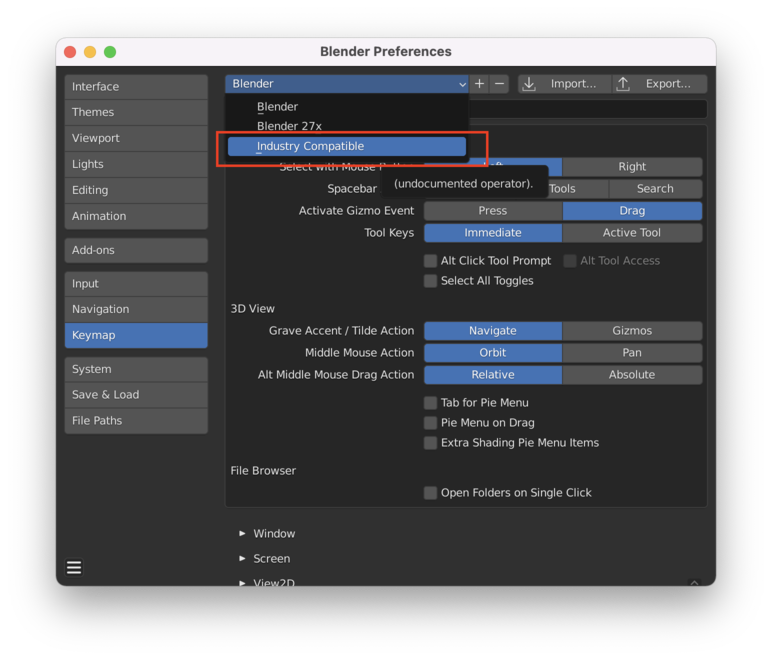

Under settings, you can use a more standard key map by going to: Edit -> Preferences - Key map and choosing Industry-standard Key map.

Object And Scene Properties Link to heading

Object Properties Link to heading

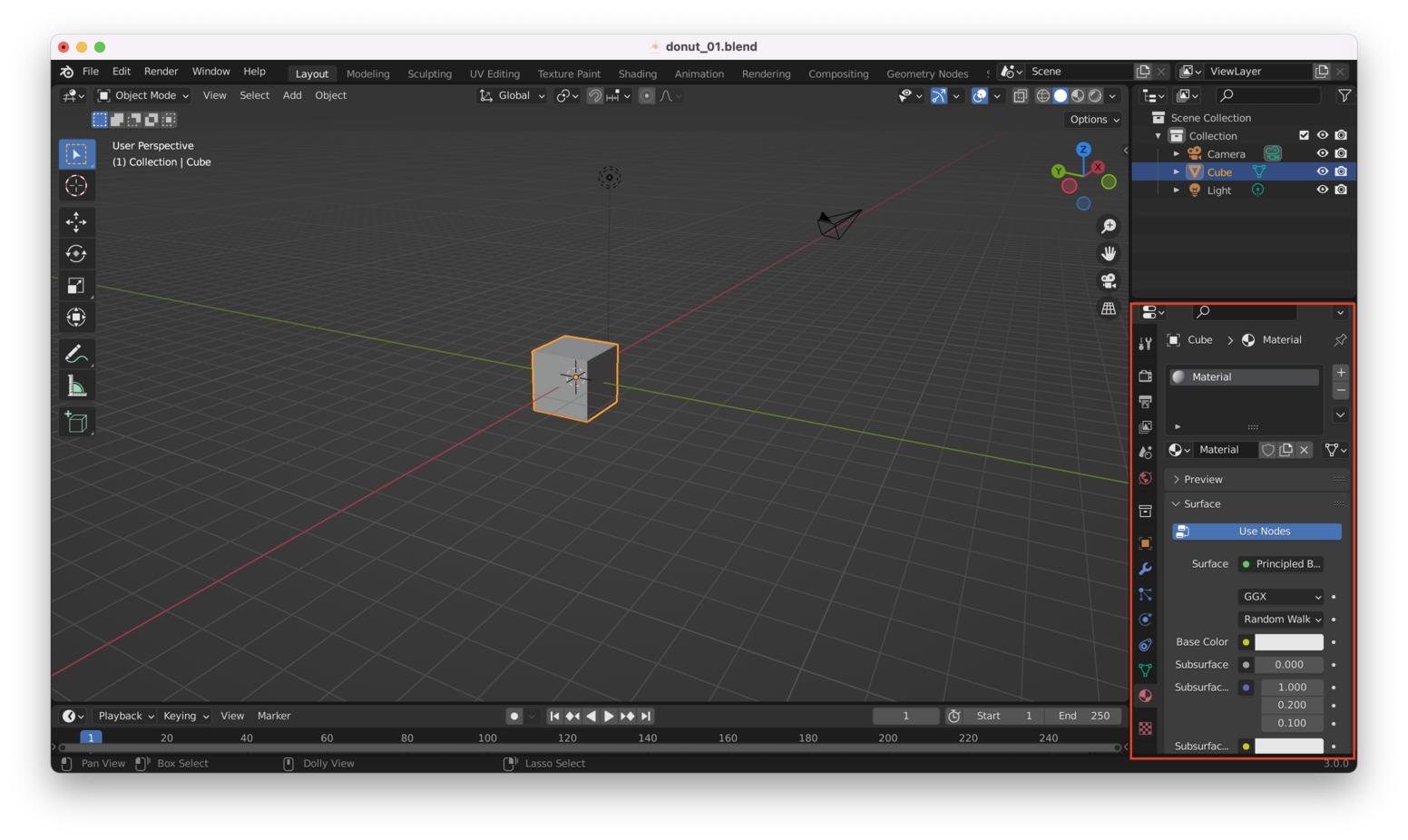

The right-hand side of the viewport will show properties of objects (i.e. material properties such as color, surface type, object dimensions, etc…):

Scene “Collection” Link to heading

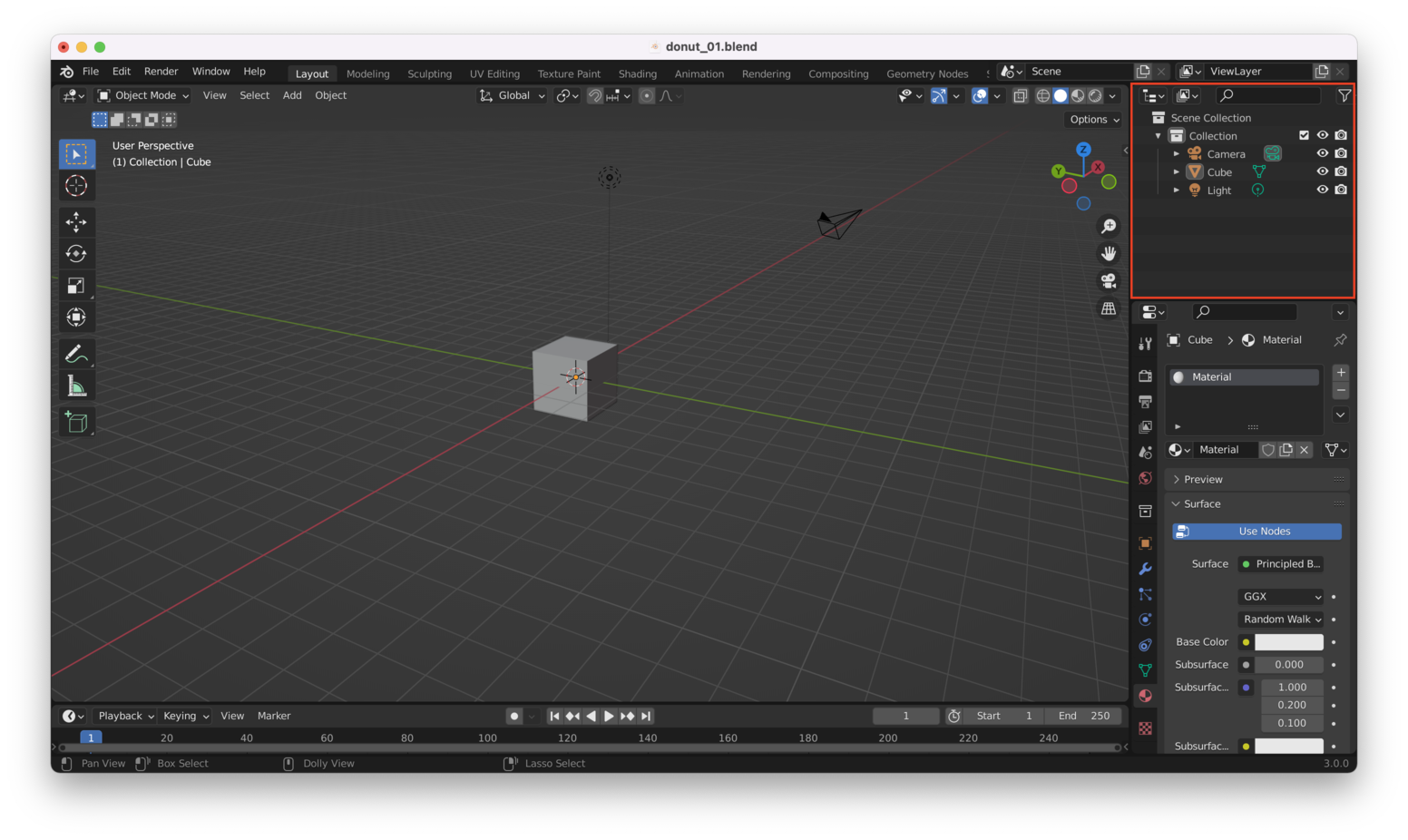

The “Collection” is an organized view of all the items in the scene (objects, cameras, lights, etc…):

Duplicating Objects Link to heading

You can duplicate an object by selecting it and hitting “Shift + D”.

Viewing Your Scene From The Camera Link to heading

When you render a scene in Blender, the render is performed from the perspective of the camera. There are four different ways to see what your camera is seeing:

1. Number pad + “0” (Zero), or “Fn + 0” (function key + zero) if you’re on a Mac

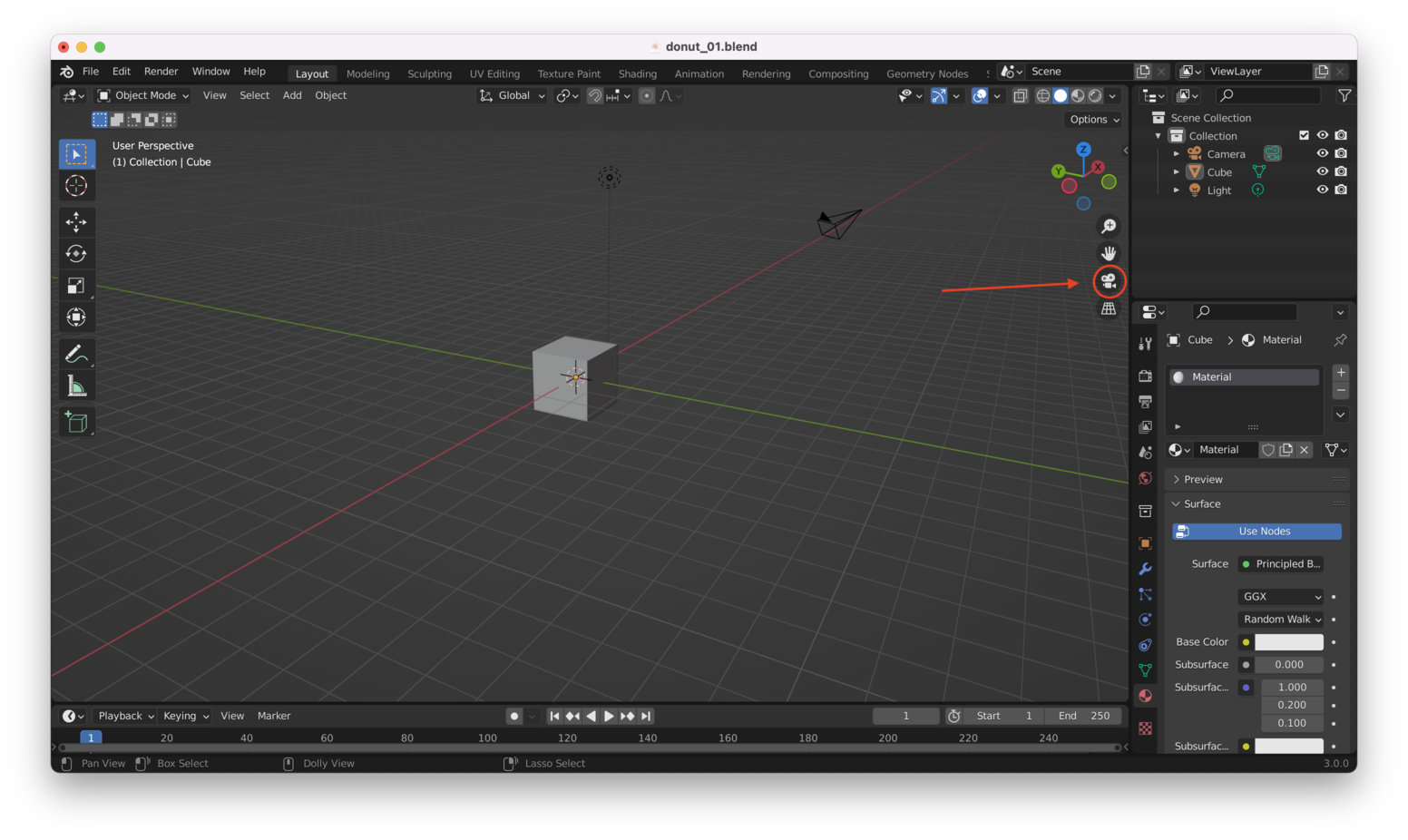

2. The camera icon on the right-hand side of the screen:

3. View -> Viewport -> Camera from the top menu bar
4. Tilde “~”, then choose “Camera View”

Deleting Objects Link to heading

• Delete objects using the “X” key
• Or, delete them by hitting the “Delete” key on your keyboard
